Vantagens do projeto estrutural do medidor de água de asa espiral removível horizontal WPH DN50 – DN200
O
Medidor de água de asa espiral destacável horizontal WPH DN50 – DN200 foi projetado em torno de uma filosofia estrutural que equilibra durabilidade, precisão hidráulica e acessibilidade para manutenção. O conceito fundamental é que um medidor de água deve integrar os elementos mecânicos, fluídicos e de design de materiais em uma estrutura coordenada para manter um desempenho consistente durante a operação a longo prazo. Ao calibrar cuidadosamente os canais de fluxo, a geometria do impulsor, o alinhamento do eixo e a rigidez da carcaça, o medidor alcança estabilidade operacional em diversas taxas de fluxo. Ningbo Water Cube Instrument Technology Co., Ltd., com sua cadeia industrial completa, incluindo design de produto, fabricação de moldes, moldagem por injeção e montagem, garante que cada componente estrutural atenda aos padrões exatos e se alinhe com a intenção geral da engenharia. A filosofia estrutural prioriza a redução da resistência interna ao fluxo, minimizando o atrito mecânico e permitindo a transferência precisa de torque do fluido para o impulsor. Este projeto permite que o medidor mantenha uma rotação consistente mesmo em condições de baixa vazão e meça com precisão altas taxas de vazão sem introduzir erros de medição. Além disso, a filosofia de design modular garante que a manutenção, calibração ou substituição do movimento interno possa ocorrer sem comprometer a integridade estrutural. Esta abordagem integrada permite que o medidor resista a forças externas de instalação, flutuações de pressão internas e desafios ambientais, mantendo a precisão da medição, tornando o projeto robusto e adaptável a diversos sistemas de abastecimento de água.

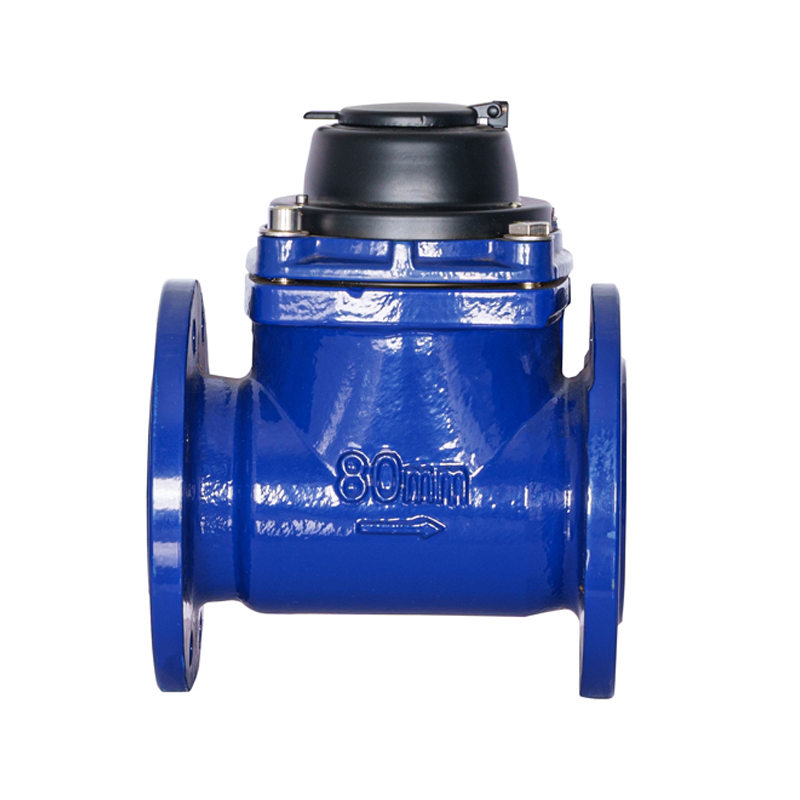

O external case of the WPH DN50–DN200 Horizontal Detachable Spiral Wing Water Meter serves as both a structural protector and a precision alignment base for internal components. Its design incorporates reinforcement ribs and contouring that distribute stress uniformly along the body, mitigating deformation under varying pressure conditions. The rib placement is calculated using finite element analysis, simulating real-world pressure fluctuations, pipeline vibrations, and thermal expansion scenarios to ensure structural stability. The casing is made from a metallurgically optimized alloy that balances corrosion resistance, mechanical strength, and thermal stability. Wall thickness is graded to provide maximum rigidity at stress points while reducing unnecessary material in low-load regions, improving both weight efficiency and ease of installation. Ningbo Water Cube Instrument Technology Co., Ltd. oversees the entire production process, ensuring that the cast, machined, and finished cases maintain strict tolerances. The result is a robust housing capable of enduring long-term cyclic stress without warping or misalignment of internal components. The case also functions as the mounting foundation for the detachable movement, ensuring precise engagement between the movement, impeller shaft, and flow chamber. Its structural integrity allows the meter to operate reliably in municipal pipelines, industrial water distribution systems, and high-pressure environments, maintaining accurate measurement across the entire DN50–DN200 diameter range.
O case of the WPH DN50–DN200 Horizontal Detachable Spiral Wing Water Meter is treated with advanced thermal spraying technology, providing a coating thickness and adhesion level twice that of traditional spray methods. This protective layer not only improves corrosion resistance but also enhances structural longevity under harsh conditions such as high humidity, chemical exposure, and buried installations. The coating adheres to the case surface with a dense micro-crystalline structure, providing a physical barrier against water, sediment, and environmental abrasion. Ningbo Water Cube Instrument Technology Co., Ltd. ensures that every meter undergoes rigorous quality testing, including pull-off adhesion assessments, thickness verification, and simulated salt spray exposure to confirm long-term reliability. The thermal sprayed coating reduces the risk of microfractures, which could otherwise compromise case rigidity or introduce dimensional inconsistencies. Internally, the protective layer prevents erosion of the chamber surface, preserving the precise alignment of the impeller and movement. This structural protection extends operational life and ensures that the meter continues to function accurately even in challenging installation environments. The coating’s durability reduces maintenance frequency, allowing for long-term cost efficiency and improved lifecycle performance without compromising measurement accuracy.
O internal flow chamber of the WPH DN50–DN200 Horizontal Detachable Spiral Wing Water Meter is engineered to minimize turbulence and optimize the interaction between the water and the impeller. Smooth internal surfaces, gradual curvature transitions, and non-obstructive entry and exit pathways ensure laminar or near-laminar flow even at variable velocities. This precise control of flow dynamics reduces mechanical resistance on the impeller, enhancing its responsiveness to changes in water flow and preserving long-term rotational stability. The spiral wing impeller features an advanced fluid dynamic floating design that balances torque distribution and minimizes bearing load while allowing early rotation at low flow rates. Ningbo Water Cube Instrument Technology Co., Ltd. integrates its in-house mold design and machining capabilities to produce internal channels with tight tolerances, ensuring consistent performance across multiple production batches. By aligning structural components with fluid mechanics principles, the meter achieves higher measurement accuracy, reduced wear on mechanical components, and improved energy efficiency in the flow system. The structural integration of the flow channel with the impeller and shaft reduces vibration, prevents misalignment under pressure fluctuations, and maintains repeatable measurement performance over the meter’s service life.

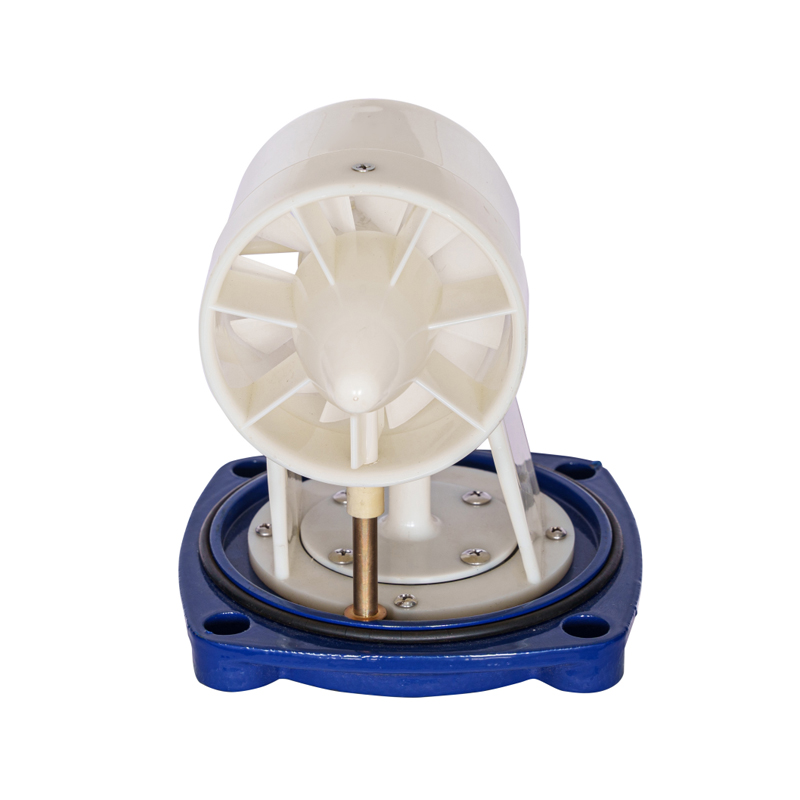

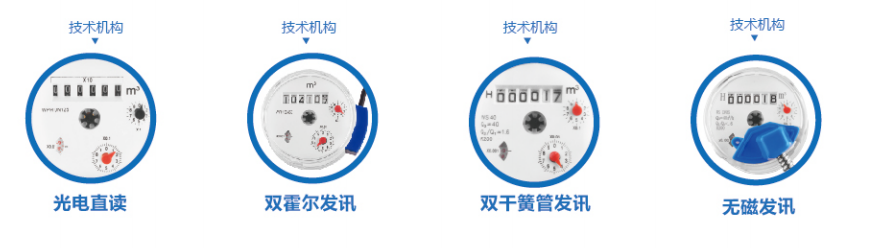

O detachable movement of the WPH DN50–DN200 Horizontal Detachable Spiral Wing Water Meter is engineered to maintain structural cohesion while allowing convenient maintenance, inspection, and replacement. The movement seating interface is precisely machined to ensure exact alignment with the central impeller shaft and casing, preserving measurement accuracy even after repeated servicing. This modular design minimizes the risk of misalignment or leakage, with reinforced mounting seats that absorb operational stresses and distribute loads evenly. Ningbo Water Cube Instrument Technology Co., Ltd. leverages its complete industrial chain, from design to assembly verification, to maintain strict tolerance control and ensure structural compatibility across components. The detachable structure allows for quick removal of the movement without disassembling the entire meter, reducing operational downtime and maintenance complexity. Structural support features, including bearing housings and anti-vibration components, maintain mechanical stability during service operations. This design approach ensures that both the case and the internal components retain their structural integrity, preventing mechanical fatigue and maintaining the meter’s long-term accuracy and reliability.
O case chamber of the WPH DN50–DN200 Horizontal Detachable Spiral Wing Water Meter is fully machined to achieve a high level of dimensional accuracy and structural consistency. Machining ensures uniform internal geometry, precise seating for the movement, and optimal clearance for the impeller. Ningbo Water Cube Instrument Technology Co., Ltd. performs strict quality checks at each production stage, verifying chamber tolerances, surface flatness, and alignment accuracy. This precision machining reduces mechanical friction, prevents rotational imbalance, and maintains consistent measurement performance even after movement replacement. The machined chamber enhances load distribution within the meter, supporting shaft and bearing assemblies during variable flow conditions. Structural consistency achieved through machining ensures that the meter performs identically across different installation environments, contributing to predictable calibration stability and long-term metrological reliability. The precise internal chamber geometry also enhances flow distribution, reducing turbulence and preserving impeller efficiency. Overall, the fully machined case chamber ensures that structural and functional performance are seamlessly integrated in a single, robust design.
